Configure the backup target
Configure the backup target for YugabyteDB universe data by following the steps below for your backup storage option.
Local storage
To create a local directory on a tserver to back up to, follow these steps:
-

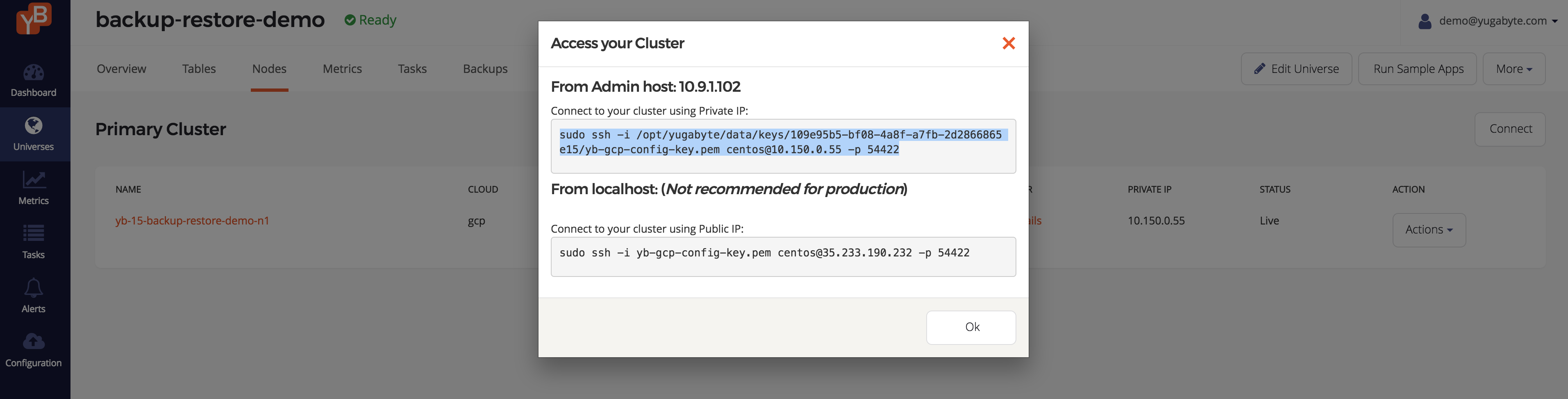

Select Connect in the Nodes tab of the universe and then select the server from Admin Host.
-
While connected using
ssh
, create a directory/backup
and then change the owner toyugabyte
.$ sudo mkdir /backup; sudo chown yugabyte /backup
Note
When you have more than one node, annfs
mounted on each server is recommended, and
creating a local backup folder on each server will not work.
Amazon S3
To configure Amazon S3 as the backup target, follow these steps:
-
Click Configs on the left panel.
-
Select the Backup tab.
-
Click Amazon S3 and enter values for Access Key, Access Secret, S3 Bucket, and S3 Bucket Host Base.
-
Click Save.
The Access Key and Access Secret values can be added for the IAM of the user.
NFS
To configure NFS as the backup target, follow these steps:
- Select Configuration on the left panel.
- Select the Backup tab.
- Click NFS and enter the NFS Storage Path (
/backup
or another directory). - Click Save.
Google Cloud Storage (GCS)
To configure NFS as the backup target, follow these steps:
- Click Configs on the left panel.
- Click the Backup tab.
- Click GCS and enter values for GCS Bucket and GCS Credentials.
- Click Save.
Microsoft Azure
To configure NFS as the backup target, follow these steps:
- Click Configs on the left panel.
- Click the Backup tab.
- Click Azure and enter values for Container URL and SAS Token.
- Click Save.
